TESCOM SG3P5250-00A10 Pressure Reducing Regulator

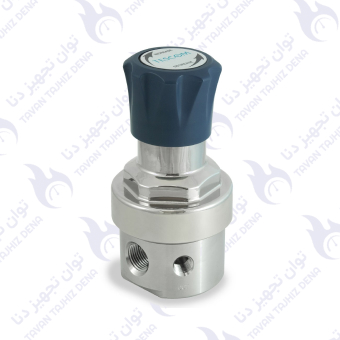

TESCOM SG3P5250-00A10 Pressure Reducing Regulator – Single Stage Cylinder 250 PSIG – Nickel Plated Brass Body

Applications:

• Laboratory and Point-of-Use Gas Systems in medical, pharmaceutical, food and beverage, and other high purity applications
• High flow, high purity air (CDA and APR) in semiconductor and biotech facilities

Features and Benefits:

• Optional neoprene diaphragm provides exceptional sensitivity for precise pressure control
• Cartridge valve design incorporates 10 micron filter to protect the regulator seat and makes service simple

Specifications:

• Maximum Inlet Pressure: 4500 psig (310 bar)
• Maximum Outlet Pressure: 250 psig (1724 kPa (17.2 bar)
• Design Proof Pressure: 150% of rated pressure
• Leakage:
  • Internal: Bubble-Tight
  • External: Designed to meet < 2 x 10-8 atm cc/sec He
• Operating Temperature: -40°F to 140°F / -40°C to 60°C
• Flow Capacity: Cv = 1.0
• Decaying Inlet Characteristic for Neoprene Diaphragm:
  • -0.49 psig (0.03 bar)
  • -100 psig (6.9 bar)
• Body Material: Nickel-Plated Brass
• Port Views: 5 Port
• Accessories
  • Gauges: psi / kPa
  • Relief Valve*: Teflon® Pipe-away

*The relief valve is not intended to be a “Pressure Relief Device” as defined by ASME Boiler & Pressure Vessel Code – Section VIII, nor is it intended to be a “Safety Accessory” or “Pressure Limiting Device” as defined by the Pressure Equipment Directive (97/23/EC). The relief valve is intended to indicate a potential problem with the regulator and prevent further damage to the regulator. The relief valve is not intended to protect the downstream process equipment.

Media Contact Materials:

• Body: Nickel-Plated Brass
• Seat: PCTFE
• Diaphragm: Neoprene
• Filter: 10 micron nominal sintered Bronze
• Seal: Buna-N
• Remaining Parts: Brass

Other:

• Connections:
  • Inlet and Outlet: 1/2 in. NPT
  • Accessories: 1/4 in. NPT
• Cleaning: CGA 4.1 and ASTM G93
• Weight: 5.5 lbs. (2.5 kg)
