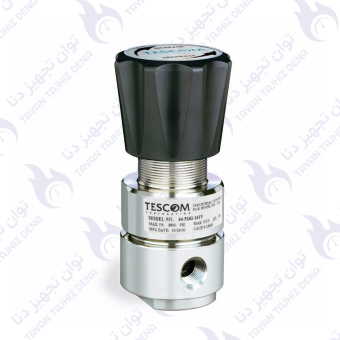

The Tescom 44-5263-242V is a compact piston sensed pressure reducing regulator designed for heavy cycle duty applications. Ideal for use in test equipment, calibration stands and production equipment.
Applications:
- Test equipment
- Calibration stands
- Production equipment
Features:
- Compact and economical design
- For gas or liquid service
- Piston sensed for high reliability and long service life
- Standard version includes 1/4″ in. NPT gauge ports
- Stainless Steel Construction
- Adjustable stop limits maximum outlet pressure
Specifications:
- Maximum Inlet Pressure: 400 psig (27.6 bar)
- Outlet Pressure Range: 2-250 psig (0.14-17.2 bar)
- Design Proof Pressure: 150 percent maximum rated
- Operating Temperature: -15°F to 200°F (-26°C to 93°C)
- Maximum Operating Torque: 30 in-lbs (3.4 N•m)
- Body Material: 316 Stainless Steel
- Optional Venting: Venting
- Connections: 1/4″ in. NPT Inlet, Outlet and Gauge Ports
Media Contact Materials:
- Body: 316 Stainless Steel
- Bonnet: 316 Stainless Steel
- Piston: 316 Stainless Steel
- Seats: Vespel®
- O-Ring: Viton®
- Filter (40 micron): 316 Stainless Steel
- Remaining Parts: 316 Stainless Steel
Other:
- Cleaning: CGA 4.1 and ASTM G93
- Weight (without gauges): 2 lbs / 0.9 kg
