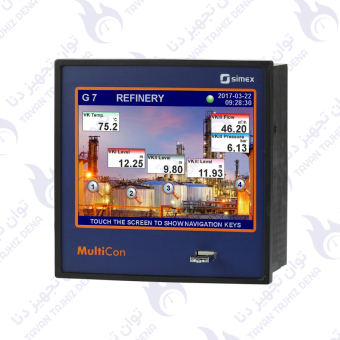

Simex Cmc141-ps32-i16-io8-1b1 Mul8con CMC-141

72

depends on configuration:

15 universal inputs max.

72 analogue inputs max.

72 digital inputs max.

36 TC inputs max.

18 RTD inputs max.

12 counter / flowmeter / ratemeter inputs max.

1 digital input 24V DC

mixed: analogue-NTC temperature

mixed: analogue-digital

0/4…20 mA

0/1…5V, 0/2…10V

0…30V

-10…25 mV, -10…100 mV, 0…600 mV, ±25 mV, ±100 mV

Pt100, Pt500, Pt1000 (PN-EN): -100…600°C, Pt’50, Pt’100, Pt’500 (GOST): -200…600°C, Ni100, Ni500, Ni1000 (PN-EN): -60…180°C, Cu50, Cu100: -50…200°C, Cu’50, Cu’100 (GOST): -200…200°C

TC K: -200…+1370°C, S: -50…+1768°C, J: -210…+1200°C, T: -200…+400°C, N: -200…+1300°C, R: -50…+1768°C, B: +250…+1820°C, E: -200…+1000°C

0…300Ω, 0…3kΩ

0-20 (1/sec.), 0-20 (1/min.), 0-20 (1/h)

4-20 (1/sec.), 4-20 (1/min.), 4-20 (1/h)

depends on configuration:

24 analogue 4…20 mA max.

36 relay 1A/250V max.

18 relay 5A/250V max.

72 SSR max.

24V DC

16…35V AC, 19…50V DC

85..260V AC/DC

5.7 inch graphic TFT, 16-bit colour, 320 x 240 pixels, with touch screen

internal 4 GB

from 0,1 s to 24 h with resolution 0,1 s

RS-485 / Modbus RTU

USB Host port

ETU (1 or 2 x USB Host, 1 x Ethernet 10 Mb/s)

ACM (3 x RS-485/RS-232, 1 or 2 x USB Host, 1 x Ethernet 10 Mb/s)

NTP

Web Server

HTTP

Modbus RTU / Master

Modbus RTU / Slave

Modbus TCP Server

0…+50°C

-20…+50°C

IP 40 (front USB Host)

IP 54 (front USB Host + transparent door with key STD-99/141)

IP 65 (front)

optional integrated frame for panel cut-out sealing

NORYL-GFN2S E1

panel

144 x 144 x 100 mm
