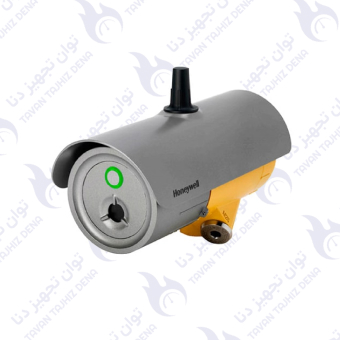

Honeywell Searchzone Sonik Ultrasonic Gas Leak Detector

Honeywell Searchzone Sonik Features

• ±90° solid angle from on axis to 6dB down field of coverage
• 20m (65ft) on-axis radius typical area of coverage
• -76 to 167°F (-55 to 75°C) operating temp
• Modbus RTU RS485, HART, Bluetooth
• Painted stainless steel or aluminium
• SIL2 to EN61508

The Honeywell Searchzone Sonik will respond quickly to a gas leak within a sensing range radius of typically 65ft (20m), dependent upon background noise. The intelligent background noise detection system allows the detector to be set up for maximum sensitivity while avoiding nuisance alarms. A sophisticated App on a hazardous area Bluetooth device delivers remote access for set-up, interrogation and maintenance, supported by an advanced test-tool enabling testing from the ground – no need to work at height. The Searchzone Sonik App allows users to save configurations and upload to other Searchzone Soniks for quick and easy commissioning.
