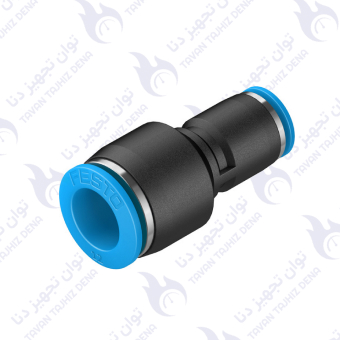

Festo Push-in connector QS-12-8

Size: Standard

Nominal size: 6.2 mm

Mounting position: optional

Design: Straight design

Size of pack: 10

Design: Push-pull principle

Operating pressure complete temperature range: -0.095 MPa … 0.6 MPa

Operating pressure complete temperature range: -0.95 bar … 6 bar

Operating pressure complete temperature range: -13.775 psi … 87 psi

Temperature-dependent operating pressure: -0.095 MPa … 1.4 MPa

Temperature-dependent operating pressure: -0.95 bar … 14 bar

Temperature-dependent operating pressure: -13.775 psi … 203 psi

Ambient temperature: -10 °C … 80 °C

Product weight: 16 g

Pneumatic connection, port 1: For tubing outer diameter of 12 mm

Pneumatic connection, port 2: For tubing outside diameter of 8 mm

Colour of release ring: Blue

Note on materials: RoHS-compliant

Material housing: PBT

Material release ring: POM

Material tubing seal: NBR

Material tubing clamp component: High-alloy stainless steel
