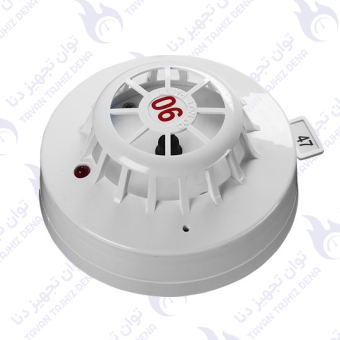

Part number: 55000-401APO
Origin: UK
توان تجهیز دنا
دتکتور حرارت XP95 دما را با استفاده از یک ترمیستور منفرد، نظارت می کند.
| Performance |
| Heat classification: CS |
| Analogue value nominal: 25 |
| Analogue value (- tolerance): 2 |
| Analogue value (+ tolerance): 2 |
| Analogue value: 25 +2/-2 |
| Alarm level analogue value: 55 |
| Mechanical |
| Materials housing: Polycarbonate |
| Materials terminals: Nickel plated stainless steel |
| Product length: 42mm |
| Product diameter: 100mm |
| Product length: 1.65in |
| Product diameter: 3.94in |
| Environmental |
| Humidity (max): 95% RH |
| Humidity (min): 0% RH |
| Humidity Note: no condensation or icing |
| Humidity: 0% to 95% (no condensation or icing) |
| Operating temperature: -20 to 70°C |
| Operating temperature (max): 70°C |
| Operating temperature (min): -20°C |
| IP rating Value: IP53 |
| Storage temperature (max): 80°C |
| Storage temperature (min): -30°C |
| Storage temperature: -30 to 80°C |
| Operating temperature: -4 to 158°F |
| Operating temperature (max): 158°F |
| Operating temperature (min): -4°F |
| Electrical |
| Protocol voltage: 5 to 9V peak to peak |
| Protocol voltage (max): 9V |
| Protocol voltage (min): 5V |
| Power-up surge current: 1mA |
| Maximum power-up time: 4 seconds |
| Status indicator – Alarm: Red |
| Status indicator – Fault: Off |
| Quiescent current: 250μA |
| Quiescent current tested at: 24V dc |
| Supply voltage (max): 28V dc |
| Supply voltage (min): 17V dc |
| Supply voltage (Vmin-Vmax): 17 to 28V dc |
| Terminal functions L2: +L2 Loop in & out positive, double terminal |
| Terminal functions L1 in: -L1 in Loop in & out, double terminal |
| Terminal functions +R: +R Remote indicator positive connection |
| Terminal functions -R: -R Remote indicator negative connection |
| Polarity: L1 & L2 are polarity insensitive |
| Battery powered: No |
